Tests and results
A new way to save
| Orientation | Energy provided annually per unit of power system | Additional yield relative to a horizontal panel | Additional yield relative to a panel facing south, tilt latitude - 15 ° |
|---|---|---|---|
| Horizontal | 927 kWh/kW | - | -19.0% |
| Facing south, tilt latitude - 15 ° | 1136 kWh/kW | +22,5% | - |
| Pointing the sun by 1 axis* | 1353 kWh/kW | +46,0% | +19,1% |
| Pointing the sun by 2 axis* | 1566 kWh/kW | +68,9% | +37,9% * |
* In accordance with the position of the building, the efficiency will increase

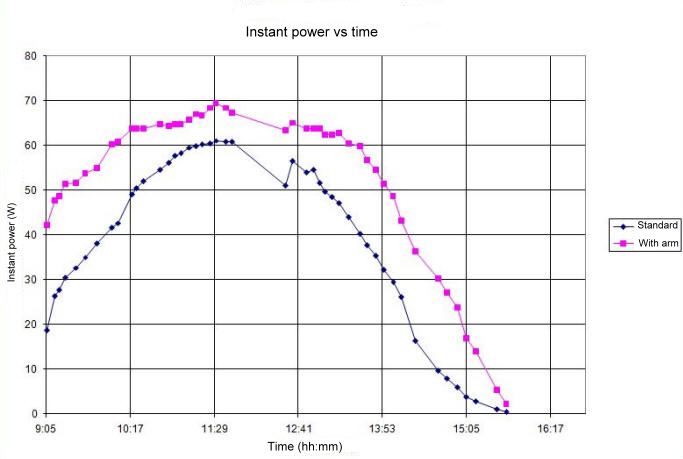

Results of experimental tests of the prototype

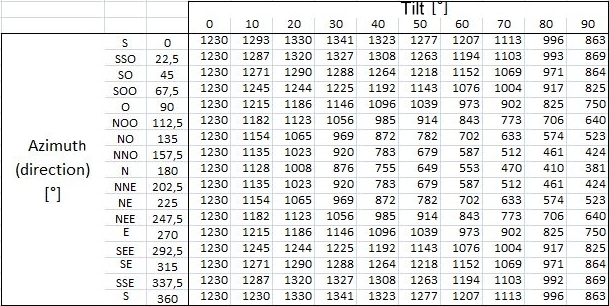

These graphs show that, depending on the position of the building, the efficiency may vary

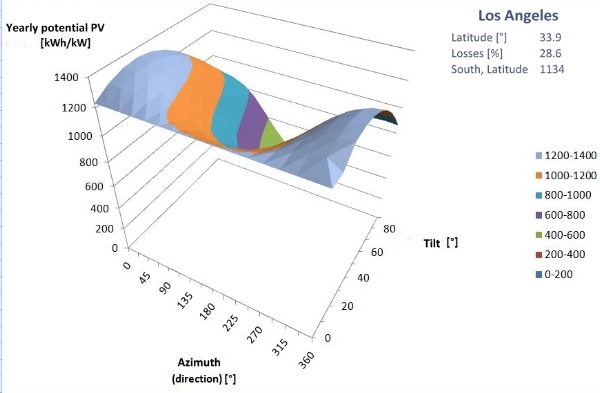

Los Angeles (California)

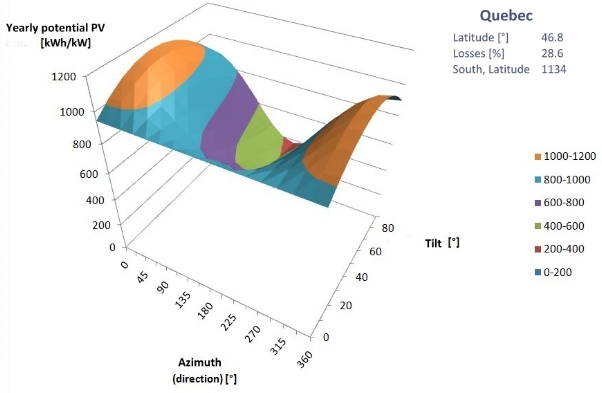

Quebec (Quebec)
